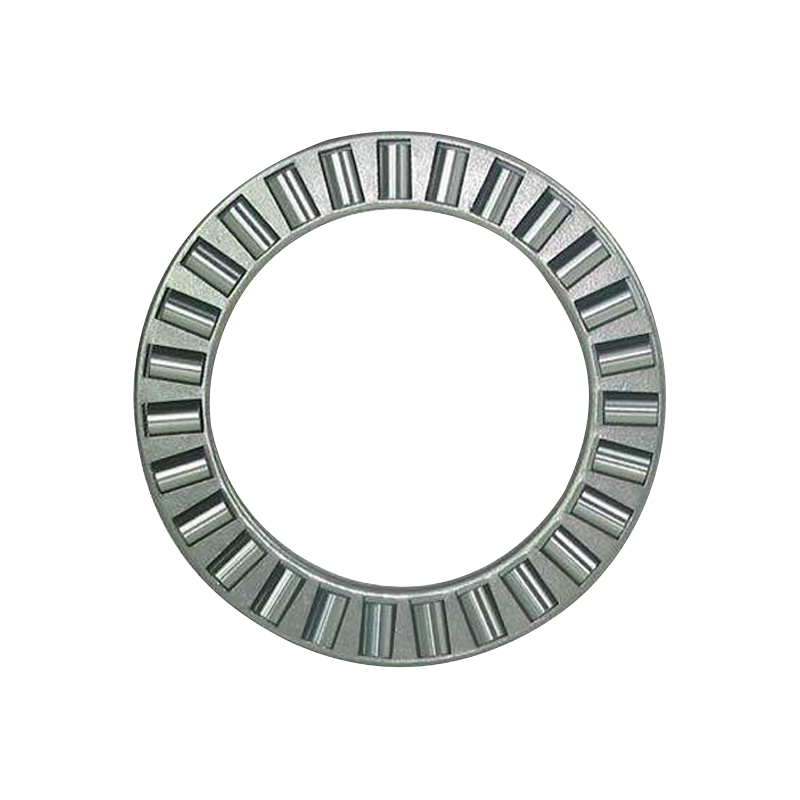

Cuscinetti assiali a rulli/aghi cilindrici

Il cuscinetto assiale a rulli cilindrici è progettato per adattarsi al carico assiale pesante e al carico d'urto. Non sopportare alcun carico radiale. Il cuscinetto è molto duro e richiede pochissimo spazio assiale

Contact Us Contattaci
PRECEDENTE：Cuscinetti a rulli cilindrici a quattro corone SUCCESSIVO：Nessun prodotto successivo
  • Specifiche
  • Contattaci
Dimensioni principali Valori di carico di base
dinamico 		Statico Indici di velocità
Velocità di riferimento 		Limitare la velocità Messa Cuscino n.
d[mm] D[mm] H[mm] Dw[mm] C[kN] C0[kN] [giri/minuto] [giri/minuto] kg
15 28 9 10.08 24.3 3870 7650 0.024 81102TN
15 28 3.5 10.08 24.3 3870 7650 0.006 K81102TN
17 30 9 10.98 28.35 3870 7650 0.027 81103TN
17 30 3.5 10.98 28.35 3870 7650 0.009 K81103TN
20 35 10 16.74 43.2 3420 6750 0.037 81104TN
20 35 4.5 16.74 43.2 3420 6750 0.013 K81104TN
25 42 11 22.5 62.55 2880 5670 0.053 81105TN
25 42 5 22.5 62.55 2880 5670 0.015 K81105TN
30 47 11 24.3 70.2 2700 5400 0.057 81106TN
30 52 16 45 120.6 2160 4320 0.12 81206TN
30 60 18 46.8 164.7 2340 4770 0.24 89306TN
30 47 5 24.3 70.2 2700 5400 0.017 K81106TN
30 52 7.5 45 120.6 2160 4320 0.033 K81206TN
30 60 5.5 46.8 164.7 2340 4770 0.04 K89306TN
35 52 12 26.1 83.7 2520 5040 0.073 81107TN
35 62 18 55.8 171 1800 3600 0.21 81207TN
35 52 5 26.1 83.7 2520 5040 0.019 K81107TN
35 62 7.5 55.8 171 1800 3600 0.043 K81207TN
35 68 6 55.8 198 2160 4320 0.053 K89307TN
40 60 13 38.7 123.3 2160 4500 0.11 81108TN
40 68 19 74.7 229.5 1710 3420 0.25 81208TN
40 78 22 85.5 328.5 1800 3600 0.48 89308TN
40 60 6 38.7 123.3 2160 4500 0.031 K81108TN
40 68 9 74.7 229.5 1710 3420 0.081 K81208TN
45 65 14 40.5 137.7 1980 4050 0.13 81109TN
45 73 20 74.7 229.5 1620 3240 0.29 81209TN
45 85 24 97.2 382.5 1620 3240 0.62 89309TN
45 65 6 40.5 137.7 1980 4050 0.035 K81109TN
45 73 9 74.7 229.5 1620 3240 0.085 K81209TN
45 85 7.5 97.2 382.5 1620 3240 0.12 K89309TN
50 70 14 42.75 149.4 1980 3870 0.14 81110TN
50 78 22 82.35 270 1530 3060 0.36 81210TN
50 70 6 42.75 149.4 1980 3870 0.038 K81110TN
50 78 9 82.35 270 1530 3060 0.098 K81210TN
50 95 8 118.8 477 1440 2880 0.18 K89310TN
55 78 16 62.55 256.5 1710 3420 0.23 81111TN
55 90 25 109.8 351 1260 2520 0.57 81211TN
55 105 30 128.7 513 1350 2700 1.18 89311TN
55 78 6 62.55 256.5 1710 3420 0.045 K81111TN
55 90 11 109.8 351 1260 2520 0.17 K81211TN
55 105 9 128.7 513 1350 2700 0.2 K89311TN
60 85 17 72 270 1620 3240 0.27 81112TN
60 95 26 123.3 418.5 1260 2520 0.65 81212TN
60 110 30 137.7 576 1260 2520 1.26 89312TN
60 130 42 279 1062 1080 2160 2.82 89412TN
60 85 7.5 72 270 1620 3240 0.082 K81112TN
60 95 11 123.3 418.5 1260 2520 0.18 K81212TN
60 110 9 137.7 576 1260 2520 0.21 K89312TN
60 130 14 279 1062 1080 2160 0.54 K89412TN
65 90 18 74.7 288 1530 3060 0.31 81113TN
65 100 27 126 441 1170 2340 0.72 81213TN
65 115 30 137.7 576 1260 2520 1.33 89313TN
65 140 45 319.5 1233 990 1980 3.52 89413TN
65 90 7.5 74.7 288 1530 3060 0.09 K81113TN
65 100 11 126 441 1170 2340 0.19 K81213TN
65 115 9 137.7 576 1260 2520 0.21 K89313TN
65 140 15 319.5 1233 990 1980 0.72 K89413TN
70 95 18 77.85 310.5 1530 3060 0.33 81114TN
70 105 27 131.4 477 1170 2340 0.77 81214TN
70 125 34 167.4 720 1170 2340 1.82 89314TN
70 150 48 342 1314 900 1800 4.18 89414TN
70 95 7.5 77.85 310.5 1530 3060 0.092 K81114TN
70 105 11 131.4 477 1170 2340 0.21 K81214TN
70 125 10 167.4 720 1170 2340 0.29 K89314TN
70 150 16 342 1314 900 1800 0.76 K89414TN
75 100 19 74.7 301.5 1440 2880 0.39 81115TN
75 110 27 123.3 441 1080 2160 0.8 81215TN
75 135 36 205.2 868.5 1080 2160 2.23 89315TN
75 160 51 360 1377 855 1710 5.96 89415 M
75 100 7.5 74.7 301.5 1440 2880 0.096 K81115TN
75 110 11 123.3 441 1080 2160 0.2 K81215TN
75 135 11 205.2 868.5 1080 2160 0.38 K89315TN
75 160 17 360 1377 855 1710 1.78 K89415 M
80 105 19 73.35 301.5 1350 2700 0.4 81116TN
80 115 28 144 549 1080 2160 0.9 81216TN
80 140 36 216 954 1080 2160 2.37 89316TN
80 170 54 396 1557 810 1620 7.04 89416 M
80 105 7.5 73.35 301.5 1350 2700 0.095 K81116TN
80 115 11 144 549 1080 2160 0.23 K81216TN
80 140 11 216 954 1080 2160 0.42 K89316TN
80 170 18 396 1557 810 1620 2.04 K89416M
85 110 19 79.2 328.5 1350 2700 0.42 81117TN
85 125 31 153 576 990 1980 1.2 81217TN
85 150 39 229.5 990 990 1980 3.39 89317 M
85 180 58 441 1737 765 1530 8.65 89417 M
85 110 7.5 79.2 328.5 1350 2700 0.12 K81117TN
85 125 12 153 576 990 1980 0.28 K81217TN
85 150 12 229.5 990 990 1980 0.93 K89317M
85 180 19 441 1737 765 1530 2.71 K89417 M
90 120 22 99 405 1170 2340 0.62 81118TN
90 135 35 208.8 778.5 900 1800 1.77 81218TN
90 155 39 238.5 1044 900 1800 3.63 89318 M
90 190 60 486 1908 720 1440 9.94 89418 M
90 120 9 99 405 1170 2340 0.15 K81118TN
90 135 14 208.8 778.5 900 1800 0.54 K81218TN
90 155 12 238.5 1044 900 1800 0.97 K89318 M
90 190 20 486 1908 720 1440 3.04 K89418 M
100 135 25 140.4 567 1080 2160 0.95 81120TN
100 150 38 243 954 810 1620 2.2 81220TN
100 210 67 612 2520 630 1260 13.4 89420 M
100 135 11 140.4 567 1080 2160 0.25 K81120TN
100 170 13 270 1233 855 1710 3.92 K89320M
100 210 22 612 2520 630 1260 1.04 K89420M
110 145 25 146.7 612 990 1980 2.29 81122TN
110 160 38 234 900 765 1530 6.7 81222TN
110 190 48 360 1647 765 1530 17.4 89322 M
110 230 73 720 3015 567 1170 1.67 89422 M
110 145 11 146.7 612 990 1980 3.98 K81122TN
110 190 15 360 1647 765 1530 11.2 K89322 M
110 230 24 720 3015 567 1170 5.11 K89422M
120 155 25 153 661.5 990 1980 1.12 81124TN
120 170 39 229.5 900 720 1440 2.54 81224TN
120 250 78 837 3510 540 1080 21.8 89424 M
120 155 11 153 661.5 990 1980 0.29 K81124TN
120 210 17 459 2124 675 1350 2.64 K89324M
120 250 26 837 3510 540 1080 6.37 K89424M
130 170 30 180 792 855 1710 1.67 81126TN
130 190 45 342 1314 630 1260 3.98 81226TN
130 225 58 504 2385 630 1260 11.2 89326 M
130 270 85 954 4050 477 990 27 89426 M
130 225 18 504 2385 630 1260 3.09 K89326 M
130 270 28 954 4050 477 990 7.96 K89426M
140 180 31 187.2 837 810 1620 1.9 81128TN
140 200 46 324 1260 630 1260 5.07 81228 M
140 240 60 576 2790 603 1170 12.5 89328 M
140 280 85 990 4320 477 990 29.7 89428 M
140 180 12 187.2 837 810 1620 0.4 K81128TN
140 200 19 324 1260 630 1260 1.8 K81228 M
140 240 19 576 2790 603 1170 3.57 K89328 M
140 280 28 990 4320 477 990 8.54 K89428 M
150 190 31 190.8 900 765 1530 2.2 81130TN
150 215 50 418.5 1710 567 1170 7.2 81230 M
150 250 60 603 2925 567 1170 13.9 89330 M
150 300 90 1125 5040 450 900 35.4 89430 M
150 190 12 190.8 900 765 1530 0.43 K81130TN
150 215 21 418.5 1710 567 1170 2.81 K81230M
150 250 19 603 2925 567 1170 3.75 K89330M
150 300 30 1125 5040 450 900 10.4 K89430 M
160 200 31 194.4 918 765 1530 2.12 81132TN
160 225 51 432 1800 540 1080 7.61 81232 M
160 320 95 1287 5760 432 855 42 89432 M
160 200 12 194.4 918 765 1530 0.44 K81132TN
160 225 21 432 1800 540 1080 3.36 K81232M
160 320 32 1287 5760 432 855 12.4 K89432M
170 215 34 256.5 1206 720 1440 2.41 81134TN
170 240 55 486 2052 504 990 9.3 81234 M
170 340 103 1440 6480 387 765 51.9 89434 M
170 215 14 256.5 1206 720 1440 0.66 K81134TN
170 240 22 486 2052 504 990 3.5 K81234M
170 340 34 1440 6480 387 765 14.9 K89434 M
180 225 34 243 1143 675 1350 3.7 81136 M
180 250 56 495 2160 504 990 9.93 81236 M
180 360 109 1584 7200 360 720 60.2 89436 M
180 225 14 243 1143 675 1350 1.46 K81136 M
180 250 22 495 2160 504 990 3.67 K81236 M
180 360 36 1584 7200 360 720 17.6 K89436 M
190 240 37 279 1314 630 1260 4.74 81138 M
190 270 62 625.5 2610 450 900 12.1 81238 M
190 380 115 1764 8100 342 675 65.7 89438 M
190 240 15 279 1314 630 1260 1.84 K81138 M
190 270 26 625.5 2610 450 900 5.17 K81238M
190 380 38 1764 8100 342 675 14.5 K89438 M
200 250 37 279 1350 630 1260 4.95 81140 M
200 280 62 648 2790 450 900 13.6 81240 M
200 400 122 1944 9000 324 630 74.8 89440 M
200 250 15 279 1350 630 1260 1.93 K81140M
200 280 26 648 2790 450 900 5.39 K81240M
200 400 40 1944 9000 324 630 24 K89440M
220 270 37 301.5 1530 603 1170 5.22 81144 M
220 300 63 675 3015 432 855 14.9 81244 M
220 420 122 2088 10080 306 630 84.4 89444 M
220 270 15 301.5 1530 603 1170 2.04 K81144M
220 300 26 675 3015 432 855 5.8 K81244 M
220 420 40 2088 10080 306 630 20 K89444 M
240 300 45 427.5 2205 504 990 8.45 81148 M
240 340 78 990 4410 360 720 22 81248 M
240 440 122 2160 10800 306 603 88 89448 M
240 300 18 427.5 2205 504 990 3.31 K81148M
260 320 45 441 2340 477 990 9.08 81152 M
260 360 79 1026 4770 342 675 27 81252 M
260 480 132 2565 12870 270 567 114 89452 M
260 320 18 441 2340 477 990 3.55 K81152M
260 360 32 1026 4770 342 675 10.8 K81252M
280 350 53 612 3195 432 855 12.6 81156 M
280 520 145 3195 13770 252 504 142 89456 M
280 350 22 612 3195 432 855 5.31 K81156 M
280 380 32 1044 4950 324 675 11.5 K81256M
300 380 62 765 3960 387 765 19.4 81160 M
300 540 145 3105 16200 252 477 153 89460 M
300 380 25 765 3960 387 765 7.59 K81160M
300 420 38 1377 6480 288 567 17.5 K81260M
320 400 63 792 4185 360 720 20.7 81164 M
320 440 95 1377 6480 270 540 42.5 81264 M
340 420 64 810 4410 342 720 22.4 81168 M
340 460 96 1440 7020 270 540 47 81268 M
340 420 25 810 4410 342 720 8.48 K81168 M
360 440 65 810 4410 342 675 19.5 81172 M
360 500 110 1836 8685 234 477 65.5 81272 M
360 440 48 612 3735 360 720 15.5 89172 M
380 460 65 810 4500 324 675 22 81176 M
380 520 112 1872 9000 234 450 75 81276 M
380 460 48 639 3960 360 720 16.5 89176 M
400 540 112 1908 9360 216 450 73 81280 M
400 480 48 661.5 4185 360 720 17.5 89180 M
420 500 65 882 5265 306 630 24 81184 M
420 500 48 688.5 4410 342 675 18 89184 M
440 540 80 1287 7200 270 540 39.5 81188 M
440 600 130 2610 13140 198 387 110 81288 M
440 540 60 936 5760 288 567 30 89188 M
460 560 80 1314 7650 270 540 41 81192 M
460 620 130 2430 12060 180 387 118 81292 M
460 560 60 972 6030 288 567 31.5 89192 M
480 580 80 1314 7650 252 504 43 81196 M
480 650 135 3015 15300 180 360 128 81296 M
480 580 60 990 6255 288 567 32.5 89196 M
500 600 80 1404 8370 252 504 46 811/500M
500 670 135 2880 14670 171 342 133 812/500M
500 600 60 1098 7335 270 540 34 891/500M
508 762 139.7 4410 23850 198 387 237 BGSB358371
530 710 120 3285 16740 180 360 135 358060
530 640 85 1557 9540 234 477 55.5 811/530M
530 710 140 3285 16740 162 324 154 812/530M
530 640 67 1233 7920 252 504 44 891/530M
560 670 85 1584 9900 234 450 58 811/560M
560 750 150 3420 18000 153 306 187 812/560M
560 670 67 1233 8235 252 477 46.5 891/560M
600 710 85 1620 10440 216 450 64 811/600M/HB1
600 800 160 3960 21600 144 288 240 812/600M
600 710 67 1287 8685 234 477 49.5 891/600M
630 750 95 1944 12330 198 405 80 811/630M
630 850 175 4320 23400 126 252 295 812/630M
630 750 73 1467 10080 216 432 62 891/630M
670 800 105 2295 14670 180 360 110 811/670M
670 900 180 5130 27450 126 252 335 812/670M
670 800 78 1800 12060 198 405 75.5 891/670M
710 950 190 5265 28800 117 234 413 812/710M
710 850 85 1980 13500 180 360 95 891/710M
750 900 120 2925 19080 153 306 155 811/750M
750 1000 195 5895 32400 108 216 445 812/750M
750 900 90 2160 14940 171 342 115 891/750M
800 950 120 3105 19800 153 306 165 811/800M
800 1060 205 6615 36450 99 198 515 812/800M
800 950 90 2250 16200 171 342 120 891/800M
850 1000 120 3105 20880 144 288 170 811/850M
850 1120 212 7335 40950 99 198 580 812/850M
850 1000 90 2340 17100 162 324 130 891/850M
900 1060 130 3600 24300 135 270 210 811/900M
900 1180 220 7650 44100 90 180 698 812/900M
900 1060 95 2745 19800 153 306 150 891/900M
950 1120 135 3960 27000 126 252 250 811/950M
950 1250 236 9000 52650 81 162 805 812/950M
950 1120 103 3105 22500 144 270 185 891/950M
1000 1180 140 4275 29250 117 234 285 811/1000M
1000 1320 250 9180 54000 76.5 153 965 812/1000M
1000 1180 109 3510 25650 135 252 220 891/1000M
1060 1250 150 4770 33750 108 216 225 811/1060M
1060 1400 265 10800 63900 67.5 135 1150 812/1060M
1060 1250 115 3735 27900 126 234 260 891/1060M
1120 1320 160 5400 37350 99 198 410 811/1120M
1120 1320 122 4410 32850 117 234 305 891/1120M
4 14 2 3.735 7.47 6750 13500 0.001 AXK0414TN
5 15 2 4.05 8.55 6030 12600 0.001 AXK0515TN
6 19 2 5.67 14.4 5400 10800 0.001 AXK0619TN
8 21 2 6.48 18 5040 9900 0.002 AXK0821TN
10 24 2 7.65 23.4 4770 9000 0.003 AXK1024
10 24 2 7.65 23.4 4770 9000 0.008 AXW 10
12 26 2 8.235 27 4500 9000 0.003 AXK 1226
12 26 2 8.235 27 4500 9000 0.009 AXW 12
15 28 2 9.36 33.75 4320 8550 0.004 AXK 1528
15 28 2 9.36 33.75 4320 8550 0.01 AXW 15
17 30 2 9.9 36.45 4050 8550 0.004 AXK 1730
20 35 2 10.8 42.75 3870 7650 0.005 AXK2035
20 35 2 10.8 42.75 3870 7650 0.014 AXW 20
25 42 2 12.06 54 3420 6750 0.007 AXK2542
25 42 2 12.06 54 3420 6750 0.02 AXW 25
30 47 2 13.5 64.8 3240 6300 0.008 AXK3047
30 47 2 13.5 64.8 3240 6300 0.022 AXW 30
35 52 2 14.94 74.7 2880 5670 0.01 AXK3552
35 52 2 14.94 74.7 2880 5670 0.027 AXW 35
40 60 3 22.5 102.6 2520 5040 0.016 AXK4060
40 60 3 22.5 102.6 2520 5040 0.039 AXW 40
45 65 3 24.3 114.3 2340 4770 0.018 AXK4565
45 65 3 24.3 114.3 2340 4770 0.043 AXW 45
50 70 3 25.65 128.7 2160 4500 0.02 AXK5070
50 70 3 25.65 128.7 2160 4500 0.049 AXW 50
55 78 3 31.05 167.4 1980 3870 0.028 AXK5578
60 85 3 33.75 208.8 1980 3870 0.033 AXK6085
65 90 3 35.1 229.5 1800 3600 0.035 AXK6590
70 95 4 44.1 229.5 1620 3240 0.06 AXK7095
75 100 4 45 238.5 1530 3060 0.061 AXK75100
80 105 4 45.9 252 1530 3060 0.063 AXK80105
85 110 4 46.8 261 1530 3060 0.067 AXK85110
90 120 4 58.95 364.5 1350 2700 0.086 AXK90120
100 135 4 68.85 504 1260 2520 0.1 AXK100135
110 145 4 73.35 558 1170 2340 0.12 AXK110145
120 155 4 77.85 612 1170 2340 0.13 AXK120155
130 170 5 100.8 747 990 1980 0.21 AXK130170
140 180 5 104.4 810 900 1800 0.22 AXK140180
150 190 5 108 855 900 1800 0.23 AXK150190
160 200 5 112.5 900 855 1710 0.25 AXK160200

Prodotti consigliati

Progettare il futuro del movimento
Chi siamo UKL
Fondata nel 2020, UKL Bearing Manufacturing Co., Ltd. (Wuxi) è Cina fornitori di cuscinetti reggispinta a rulli cilindrici e OEM/ODM azienda di cuscinetti reggispinta a rullini, un'impresa industriale e commerciale integrata che si concentra sulla produzione di precisione, combinando ricerca e sviluppo, produzione e vendite.
L'azienda è specializzata in soluzioni di cuscinetti ad alte prestazioni, fornendo supporto tecnico a industrie globali con richieste eccezionalmente elevate di precisione e affidabilità.

Con oltre 200 professionisti qualificati e una base produttiva completamente modernizzata, gli impianti di UKL coprono l'intero processo produttivo: forgiatura, ricottura, tornitura, trattamento termico, rettifica e assemblaggio automatizzato.
Grazie a oltre 15 anni di esperienza nell'esportazione OEM/ODM, UKL risponde rapidamente alle esigenze dei clienti, offrendo servizi flessibili e personalizzati per clienti in Europa, Asia, Africa e Medio Oriente.

Ukl Bearing Manufacturing Co.,Ltd Maggiori informazioni su di noi Ukl Bearing Manufacturing Co.,Ltd
  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    anni

    Esperienza nel settore

  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    Varietà di modelli

  • Ukl Bearing Manufacturing Co.,Ltd

    0+

    Numero di dipendenti

  • Ukl Bearing Manufacturing Co.,Ltd

    0

    $

    Valore annuo delle esportazioni

Ukl Bearing Manufacturing Co.,Ltd
Certificato d'onore
Novità
Cuscinetti a rulli cilindrici Conoscenza del settore
